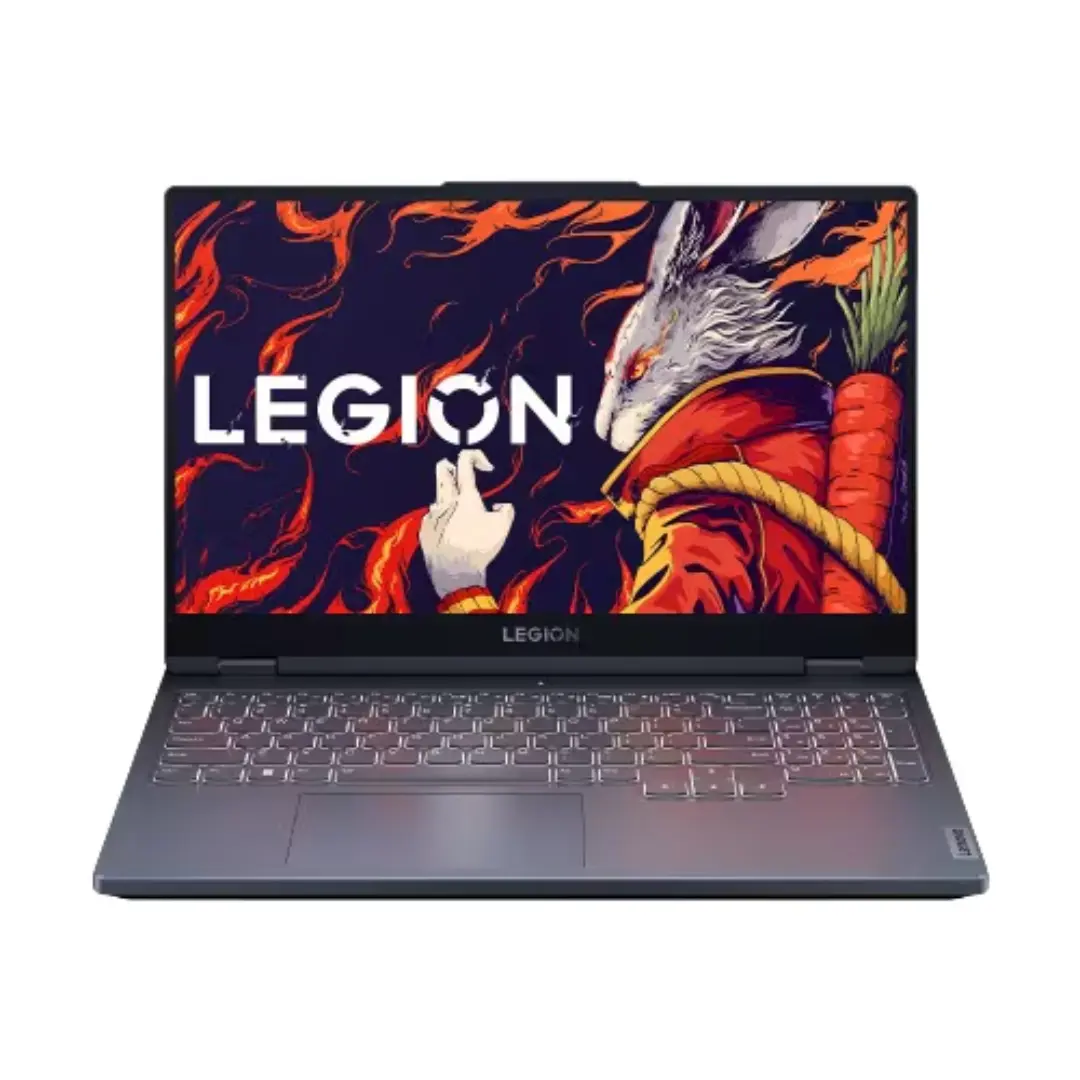

Lenovo Legion 5 Y7000 (Intel i7 13th Gen, RTX 4060) - Precise Technical Specifications
(15.6" FHD 144Hz IPS 100% sRGB 300nits G-Sync, Wi-Fi 6 AX, Bluetooth 5.1, Storm Grey)
Processor: Intel® Core™ i7-13650HX Processor
Cores/Threads: 14 Cores (6 Performance, 8 Efficient) / 20 Threads
Base Frequency: 3.60 GHz
Max Turbo Frequency: Up to 4.90 GHz
Cache: 24 MB Intel® Smart Cache
Generation: 13th Generation (Raptor Lake)
Operating System: Windows 11 Home (Pre-installed)
Memory: 24GB (12GB x 2) DDR5-4800MHz RAM
Configuration: Dual-channel capable, two SO-DIMM sockets.
Storage: 512GB PCIe 4.0 NVMe™ M.2 SSD
Graphics:
Dedicated Graphics: NVIDIA® GeForce RTX™ 4060 8GB GDDR6 (Laptop GPU)
Max TGP (Total Graphics Power): Up to 140W (with Dynamic Boost)
Features: Supports real-time ray tracing, NVIDIA DLSS 3, NVIDIA G-Sync.
Integrated Graphics: Intel® UHD Graphics (Processor Graphics)
Switchable Graphics: Yes
Display: 15.6" Full HD (1920x1080) IPS Anti-Glare Display
Refresh Rate: 144Hz
Brightness: 300 nits
Color Gamut: 100% sRGB
Features: NVIDIA G-Sync support for tear-free gaming.
Audio:
Nahimic Audio
HD Audio, Realtek ALC3287 codec
Harman® stereo speakers with chamber, 2W x 2
Dual array microphone
Headphone / microphone combo jack (3.5mm)
Webcam: 720p HD Camera
Resolution: 1.0MP resolution
Features: Fixed focus, with dual array microphone.

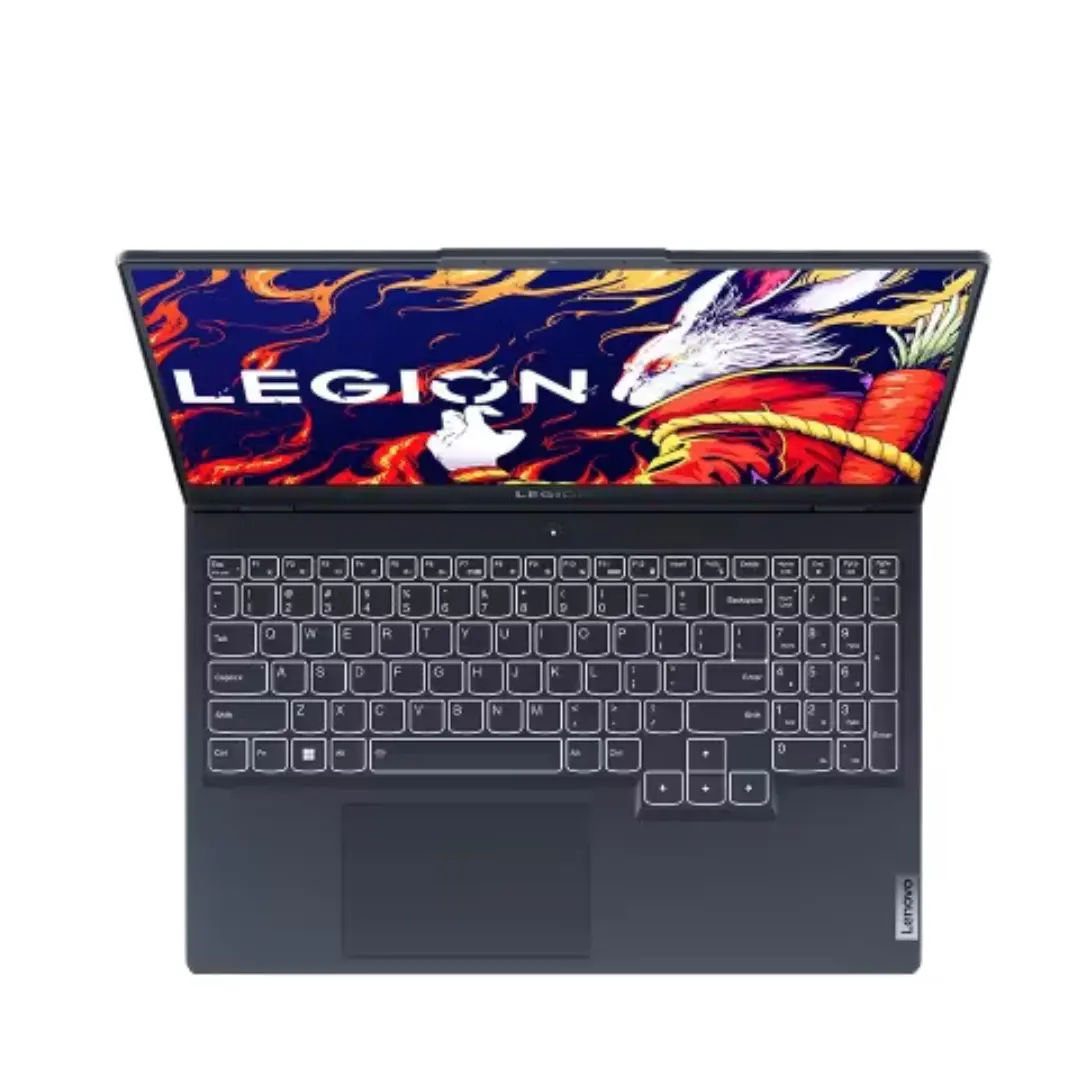

Keyboard: Full-size Backlit Keyboard
Layout: QWERTY NA Layout with Numeric Keypad
Backlight: White Backlit Keyboard
Wireless:
Wi-Fi: Wi-Fi 6 (802.11ax 2x2) AX
Bluetooth: Bluetooth® 5.1

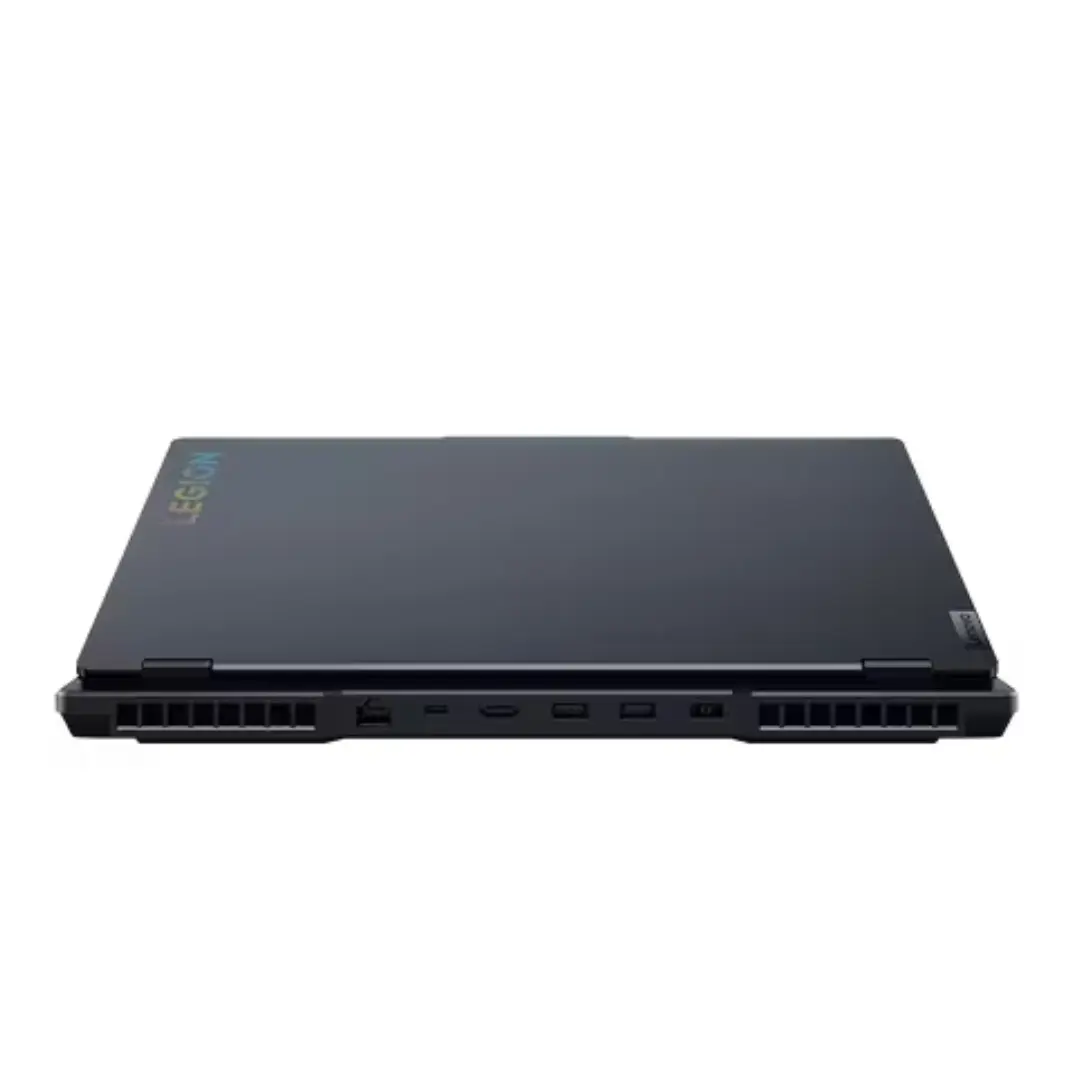

Ports:
2x USB-C (Thunderbolt™ 4 compatible)
3x USB-A 3.2 Gen 1 (one with Always-On charging)
1x HDMI 2.1 (supports 4K/120Hz video output)
1x Ethernet (RJ-45)
1x Headphone / microphone combo jack (3.5mm)
1x Security keyhole
1x AC power adapter jack
Battery: Integrated Li-Polymer 60Whr Battery (Typical)
Power Adapter: 230W AC Adapter (Type-C charging not primarily supported for full power)
Estimated Battery Life: Varies significantly with usage (gaming, settings, etc.). Expect around 3-5 hours for typical mixed use, less for intense gaming.
Chassis & Security:
Design: Gaming Laptop, designed for high performance.
Color: Storm Grey
Material: PC/ABS Plastic (Chassis), Aluminum (Top Cover, specific to some variants). Generally, the Y7000 models often feature a blend of materials.
Dimensions (W x D x H): Approximately 360mm x 267mm x 23.9-25.6mm (14.17" x 10.51" x 0.94-1.01")
Weight: Approximately 2.3 kg (5.07 lbs) or more.
Security: Firmware TPM 2.0 integrated in chipset, security keyhole.

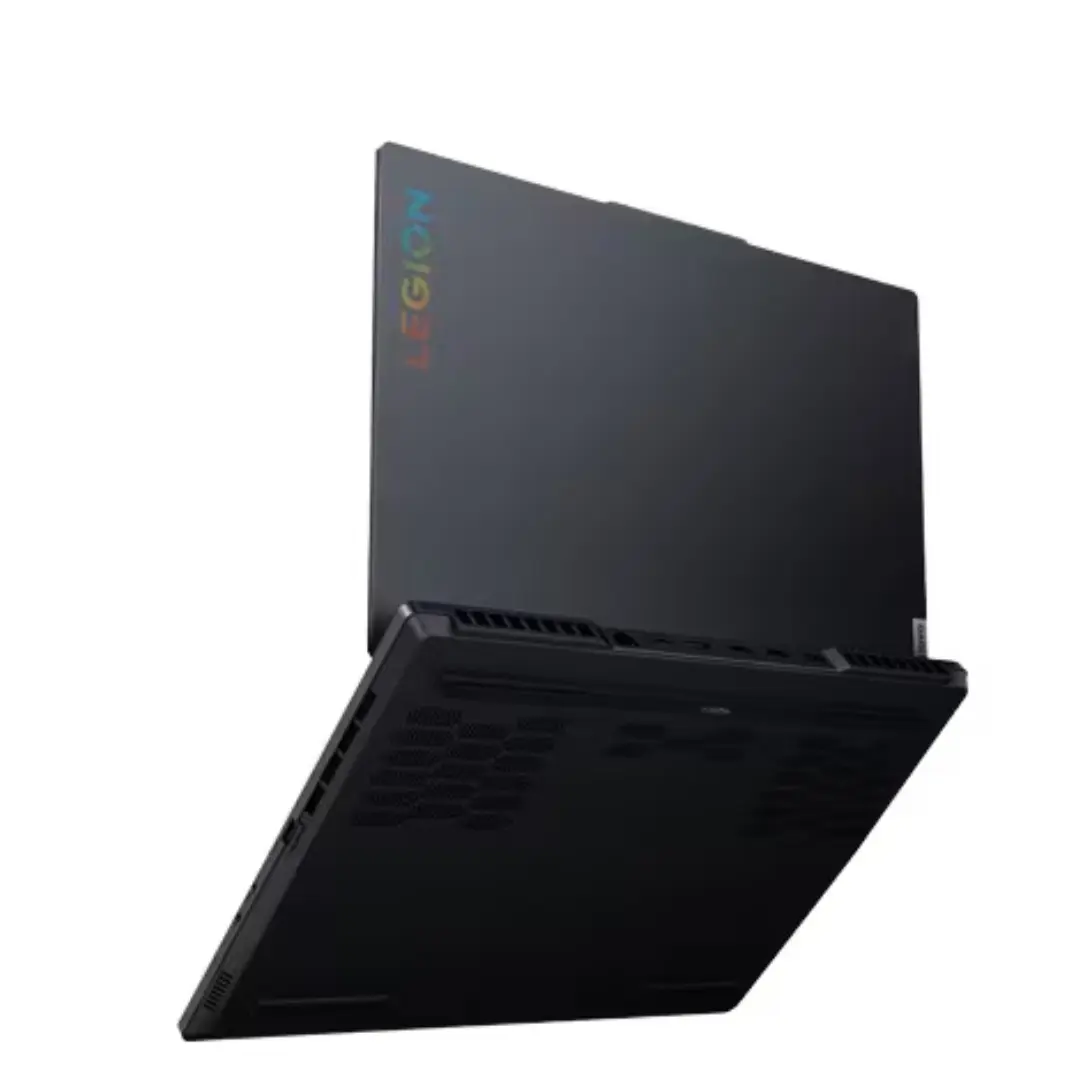

Cooling System: Features an advanced cooling solution with multiple heat pipes and fans for efficient thermal management during intense gaming.
