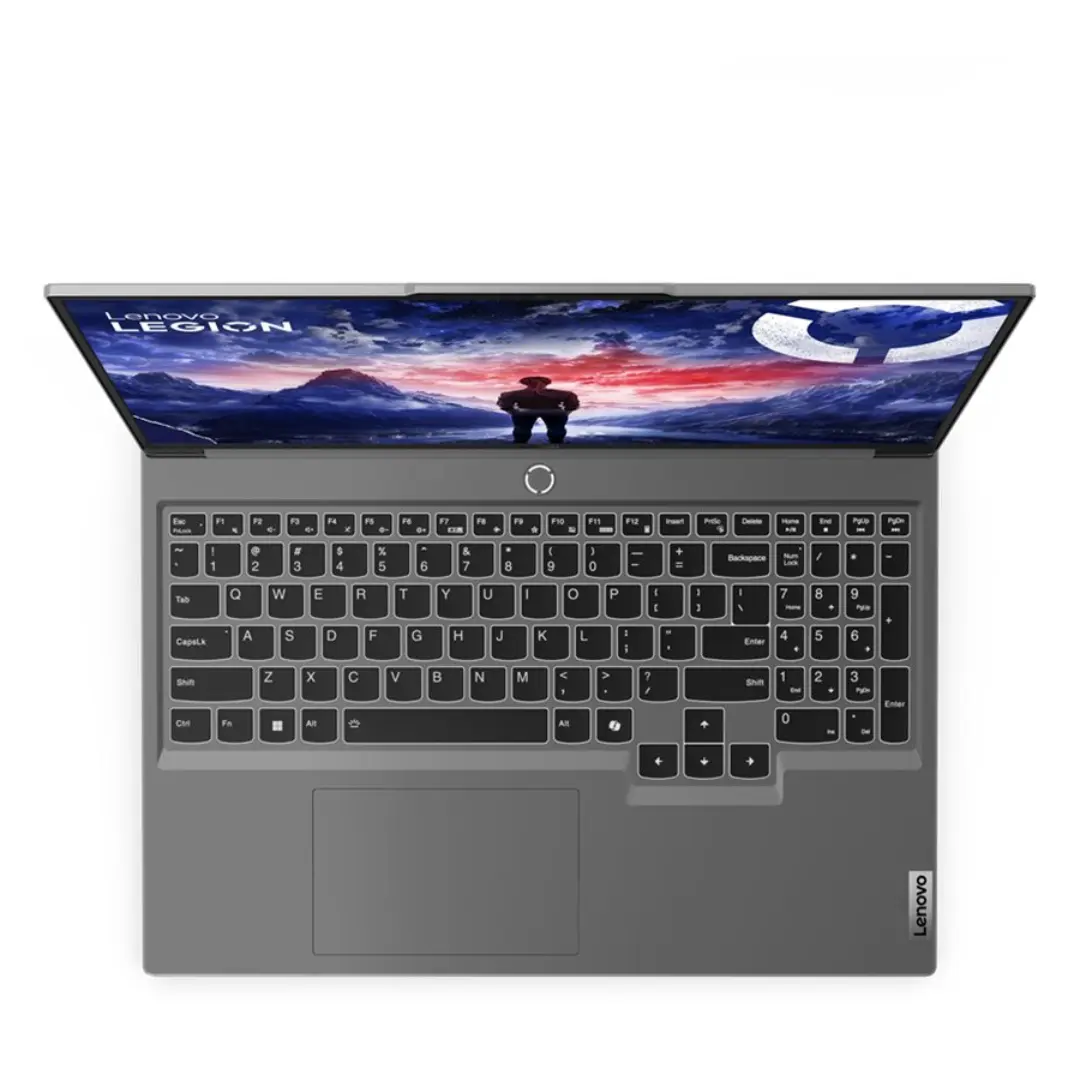

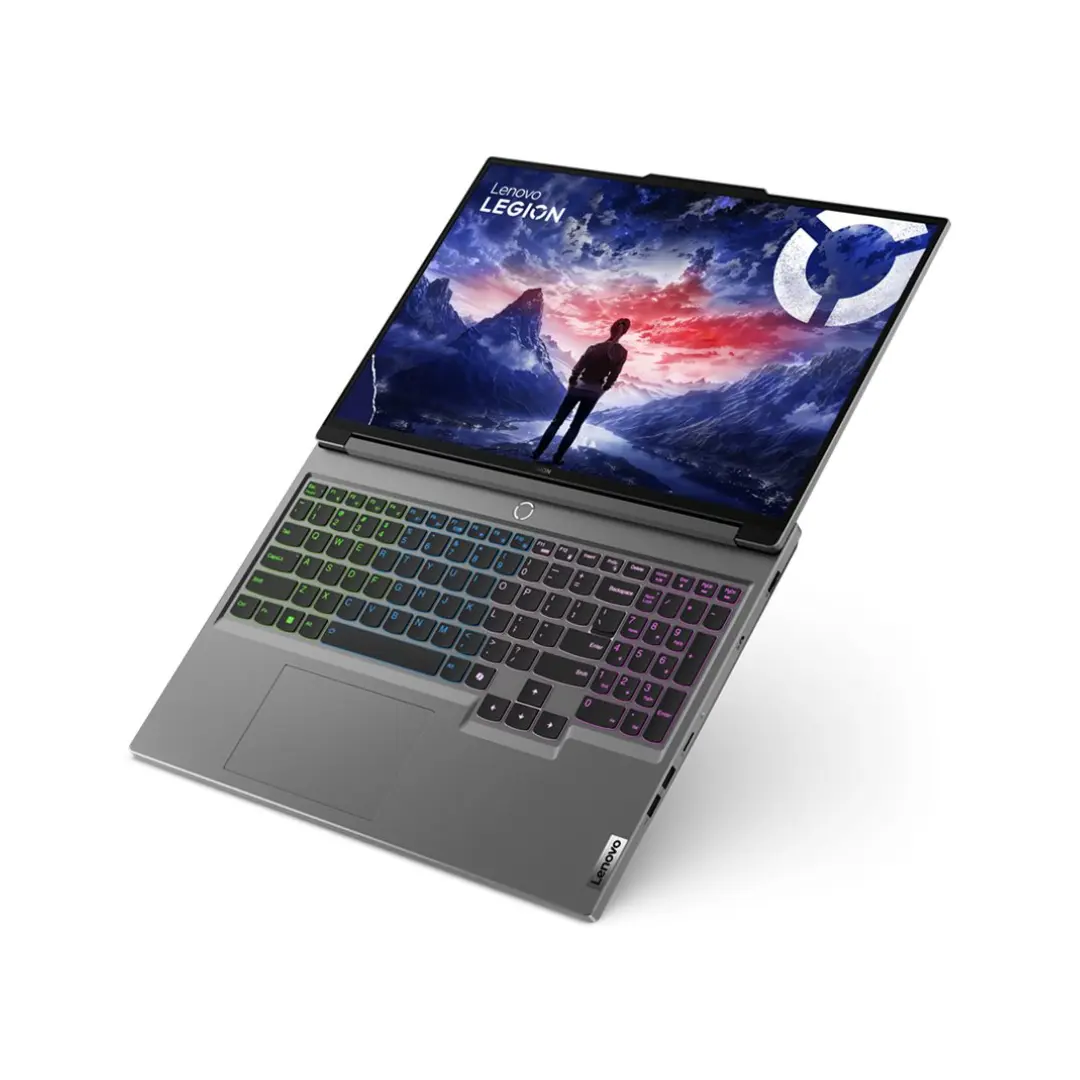

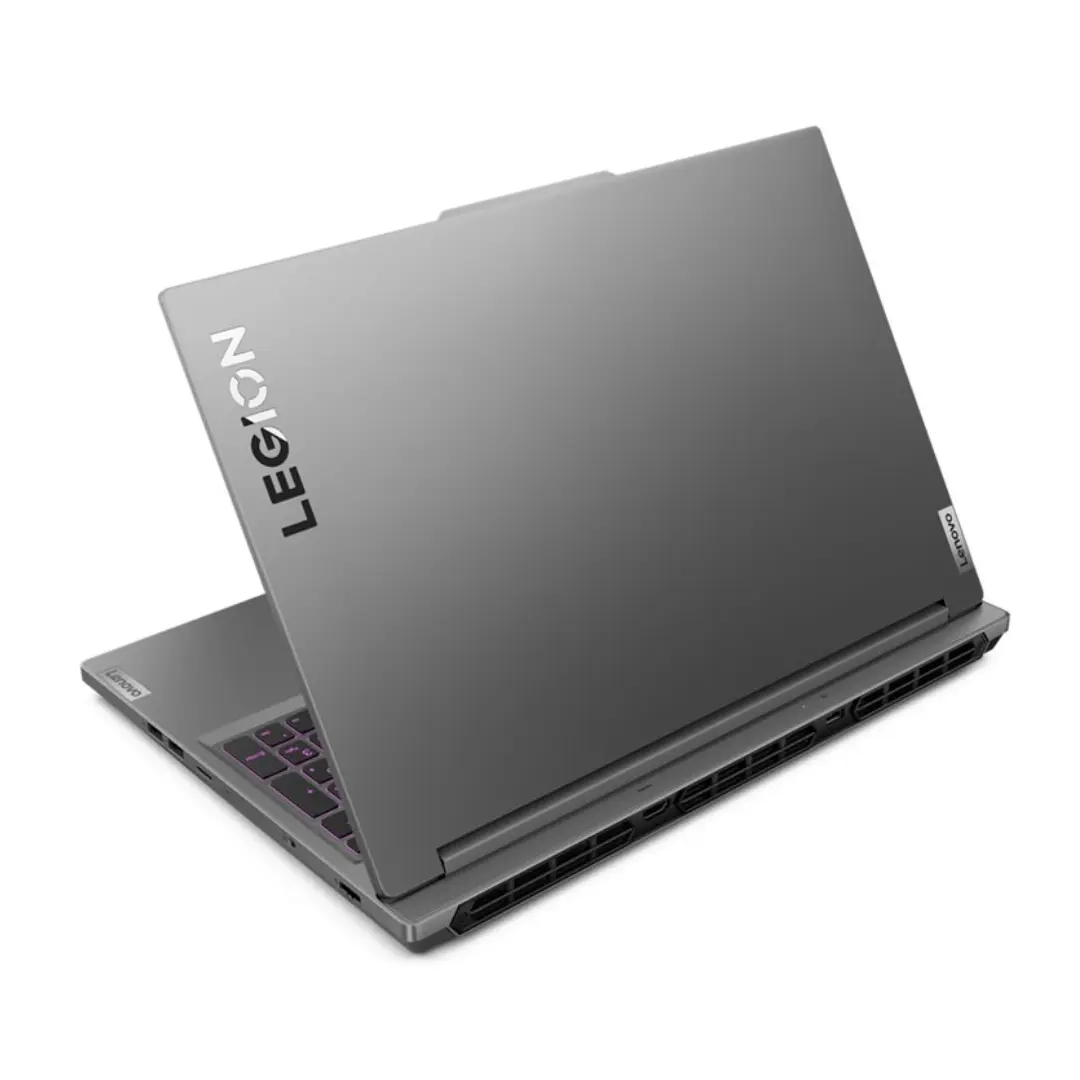

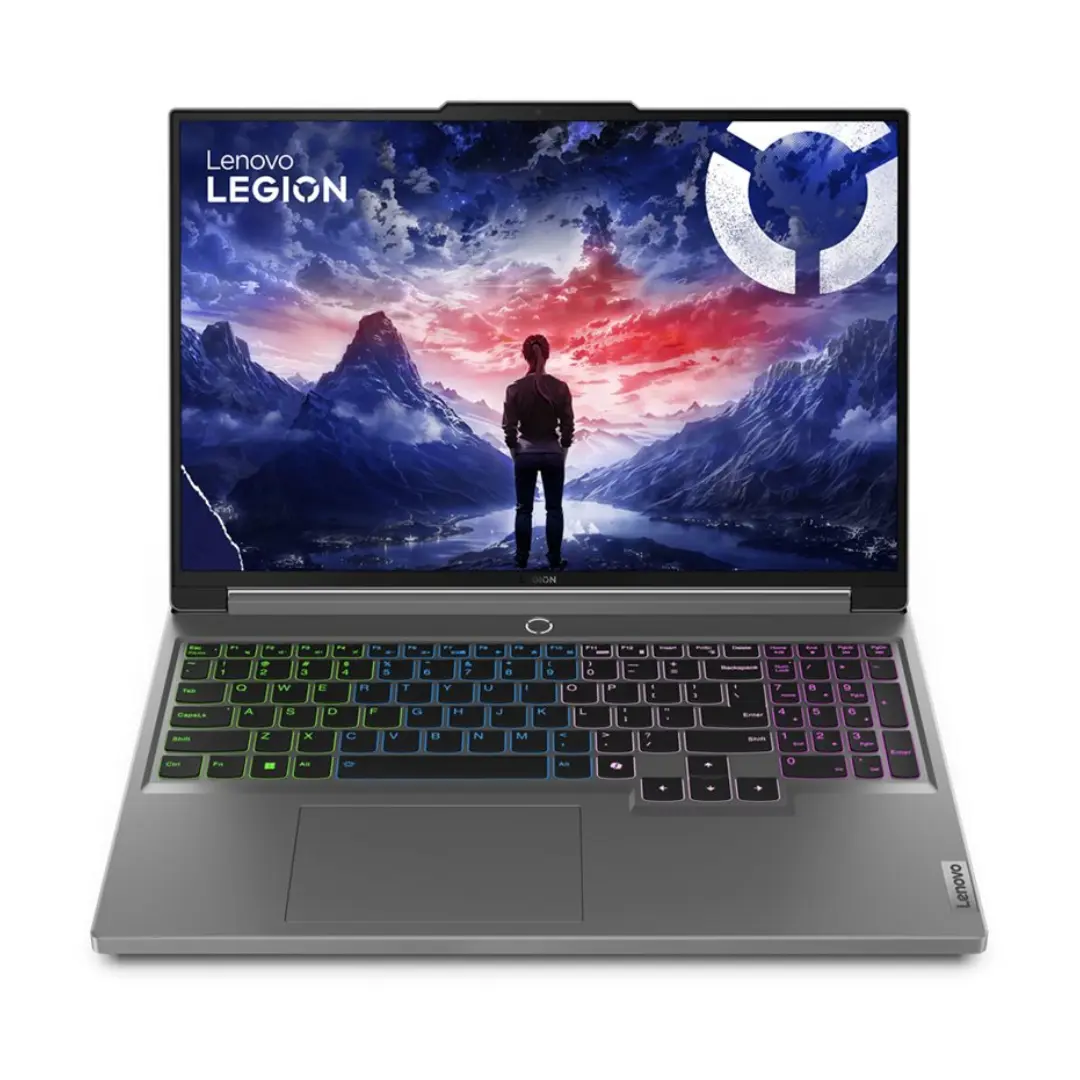

Lenovo Legion 5, Intel i7 13th Gen, 16GB RAM, 1TB SSD, RTX 4060 8GB Graphic Card, 16 inch WQXGA, Backlight Keyboard, WiFi 6, Bluetooth 5.1, DOS, Luna Gray, Gaming Laptop

Lenovo Legion 5 16IRX9 (Intel i7 13th Gen, RTX 4060) - Precise Technical Specifications

• Processor: Intel® Core™ i7-13650HX Processor

  • Cores/Threads: 14 Cores (6 Performance, 8 Efficient) / 20 Threads

  • Base Frequency: 2.6 GHz (P-core) / 1.9 GHz (E-core)

  • Max Turbo Frequency: Up to 4.90 GHz (P-core) / 3.6 GHz (E-core)

  • Cache: 24 MB Intel® Smart Cache

  • Generation: 13th Generation (Raptor Lake)

• Operating System: DOS (FreeDOS, allowing users to install their preferred OS)

• Memory: 16GB (1x 16GB or 2x 8GB depending on configuration) DDR5-4800MHz RAM

  • Configuration: Two SO-DIMM slots, dual-channel capable. Max memory supported up to 64GB DDR5-4800MHz.

• Storage: 1TB PCIe 4.0 NVMe™ M.2 SSD

  • Storage Slots: Two M.2 2280 PCIe® 4.0 x4 slots. Supports up to two drives, each M.2 2280 SSD up to 1TB.

• Graphics:

  • Dedicated Graphics: NVIDIA® GeForce RTX™ 4060 8GB GDDR6 (Laptop GPU)

    • Boost Clock: Up to 2370MHz

    • Max TGP (Total Graphics Power): Up to 140W (with Dynamic Boost)

    • Features: Supports real-time ray tracing, NVIDIA DLSS 3.5, Advanced Optimus, Dynamic Boost 2.0, DirectX® 12 Ultimate, VR Ready.

  • Integrated Graphics: Intel® UHD Graphics (Processor Graphics)

  • Switchable Graphics: Yes (via Advanced Optimus)

• Display: 16" WQXGA (2560x1600) IPS Anti-Glare Display

  • Aspect Ratio: 16:10

  • Refresh Rate: 165Hz

  • Brightness: 350 nits

  • Color Gamut: 100% sRGB

  • Features: Dolby Vision®, NVIDIA® G-SYNC® compatible, Low Blue Light technology, X-Rite factory color calibration.

• Audio:

  • HD Audio, Realtek® ALC3287 codec

  • Stereo speakers, 2W x2, optimized with Nahimic Audio

  • Dual array microphone

  • Headphone / microphone combo jack (3.5mm)

• Webcam: FHD 1080p Camera with E-shutter

  • Features: Fixed focus, with dual array microphone, privacy shutter (E-shutter).

• Keyboard: 4-Zone RGB Backlit Keyboard

  • Layout: US English (or regional specific, QWERTY with Numeric Keypad)

  • Features: 1.5mm key travel, multi-touch touchpad.

• Wireless:

  • Wi-Fi: Wi-Fi 6E (802.11ax 2x2)

  • Bluetooth: Bluetooth® 5.2

• Ports:

  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

  • 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with Lenovo® PD 140W and DisplayPort™ 1.4

  • 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4

  • 1x HDMI® 2.1 (supports up to 8K/60Hz)

  • 1x Headphone / microphone combo jack (3.5mm)

  • 1x Ethernet (RJ-45)

  • 1x Card reader (microSD Card Reader)

  • 1x Power connector

• Battery: Integrated Li-Polymer 80Whr Battery

  • Power Adapter: 230W Slim Tip (3-pin) AC Adapter

  • Estimated Battery Life: Up to 6.5 hours for local video playback (150 nits). Real-world mixed usage typically ranges from 4-6 hours, significantly less during intense gaming. Supports Rapid Charge Pro (up to 50% in 30 minutes).

• Chassis & Security:

  • Design: Gaming Laptop, featuring an 180-degree hinge design.

  • Color: Luna Grey

  • Case Material: Aluminum (Top Cover), PC-ABS (Bottom)

  • Surface Treatment: Aluminium stamping (anodized with sandblasting)

  • Dimensions (W x D x H): Approximately 359.7 x 262.3 x 19.7-25.2 mm (14.16 x 10.33 x 0.78-0.99 inches)

  • Weight: Approximately 2.36 kg (5.2 lbs)

  • Security: Firmware TPM 2.0 integrated in chipset, E-shutter for webcam privacy.

  • Cooling System: Legion ColdFront cooling technology with an improved fan system for efficient thermal management during intense gaming.
